In automotive engineering, particularly within the differential system, the terms “crown wheel” and “ring gear” are often used. While they sound like different parts, many professionals and DIY mechanics wonder: are they actually the same component? This article explains the difference—if any—between the two terms, examines regional usage, and explores related technical insights, including the purpose of changing ring gear ratios and common gear failures.

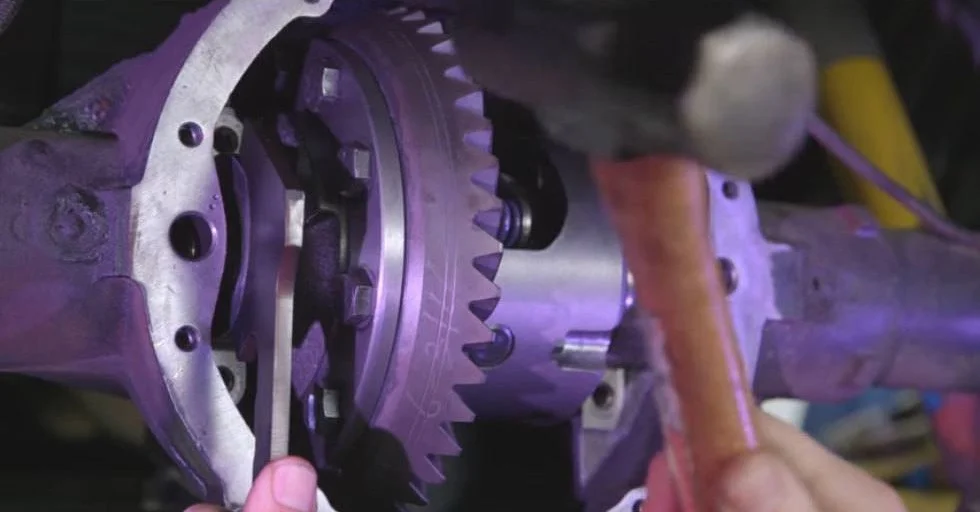

What Is a Ring Gear?
- Changes the direction of rotation (typically by 90 degrees in rear-wheel drive setups)
- Multiplies torque through gear reduction
- Determines the final drive ratio, which influences vehicle performance
This component is essential for smooth and reliable power transmission from the engine to the road.
What Is a Crown Wheel?
A crown wheel is functionally identical to a ring gear. The term is primarily used in British English and in countries that follow UK automotive terminology. In nearly all modern vehicles, the crown wheel and ring gear refer to the same part of the differential: the large gear that receives input from the pinion.
The distinction between the two terms lies not in design or function, but in regional language preferences.
Terminology by Region
| Term | Commonly Used In |
|---|---|
|
Ring Gear |
United States, Canada, Japan |
|
Crown Wheel |
United Kingdom, Australia, India |
Despite the different names, both terms describe the same component in typical vehicle differentials.
Are There Any Mechanical Differences?
- Installed in the same position inside the differential
- Engaged by the same pinion gear
- Responsible for the same torque transfer function
While some industrial machinery may use the term “crown wheel” to describe bevel or curved gears in special configurations, in standard passenger vehicles, the components are identical.
Why Change the Ring Gear Ratio?
1. Improved Acceleration
A higher numerical gear ratio (e.g., 4.10:1 instead of 3.55:1) increases torque at the wheels, which improves low-speed acceleration. This is beneficial for vehicles used in racing, off-roading, or urban driving.
2. Tire Size Compensation
Larger tires increase the effective rolling diameter, which can reduce torque and responsiveness. Installing a higher gear ratio compensates for this change and restores original drivability.
3. Better Towing and Load Handling
For trucks or SUVs used for towing, a higher gear ratio helps maintain power and reduces strain on the engine during uphill climbs or heavy hauls.
4. Fuel Efficiency at Highway Speeds
In some cases, especially with vehicles primarily used for highway driving, a lower gear ratio (e.g., 3.08:1) can reduce engine RPMs, improving fuel economy.
Note: The ring and pinion gears are always replaced together as a matched set to ensure proper meshing and durability.
Common Ring Gear Failures and Their Causes
Although built for durability, ring gears can still fail under certain conditions. Understanding these failure modes is important for maintenance and performance tuning.
1. Excessive Wear
- Cause: High mileage, poor lubrication, or contaminated gear oil
- Result: Noise during acceleration or deceleration, vibration, reduced performance
2. Broken or Chipped Teeth
- Cause: Sudden torque shock, improper installation, metal fatigue
- Result: Grinding noise, drivetrain failure, potential loss of power to wheels
3. Backlash Issues
- Cause: Incorrect installation, worn shims, or bearing movement
- Result: Clunking noises during gear changes or when going on/off throttle
4. Overheating
- Cause: Low or dirty gear oil, excessive loads, poor ventilation
- Result: Discoloration of gear surfaces, oil breakdown, eventual failure
5. Misalignment
- Cause: Bent axles, bad bearings, or incorrect pinion depth
- Result: Uneven wear, gear whine, premature failure
Conclusion
While the terms crown wheel and ring gear may initially seem like different components, they are, in the context of automotive differentials, the same part. The difference lies solely in naming conventions between regions. Understanding this distinction can help avoid confusion when sourcing parts, reading manuals, or communicating with mechanics around the world.
Beyond terminology, knowing how the ring gear ratio affects performance—and recognizing early signs of gear failure—can make a significant difference in vehicle reliability and customization.
