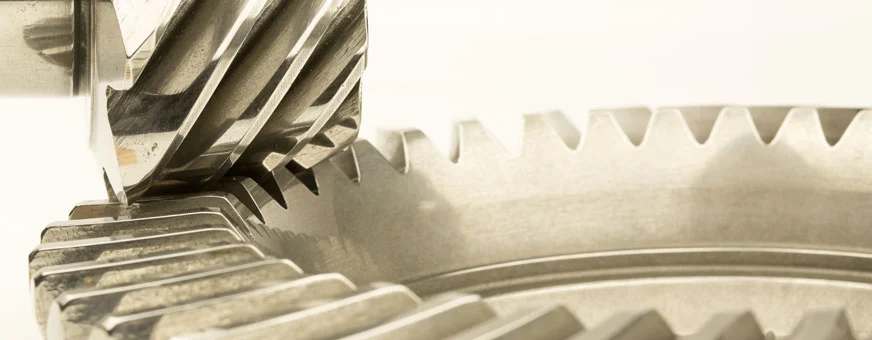

When it comes to crown wheel and pinion gears, understanding the difference between reverse and standard rotation is essential, especially for those working with high-performance, off-road, or custom drivetrain setups. This distinction is more than a technical curiosity—it plays a critical role in vehicle performance, gear longevity, and drivetrain compatibility. In this article, we break down the differences between standard and reverse rotation gears, their respective applications, and how to choose the right configuration for your vehicle.
What Is Standard Rotation?
Standard rotation, also referred to as “standard cut” or “OEM cut,” describes the typical configuration used in most stock vehicles. In this setup, the pinion gear rotates in the conventional direction, driving the ring gear in a pattern optimized for forward motion.
- Pinion Approach: Enters the ring gear on the concave side.
- Typical Use: Factory-installed in passenger vehicles, light-duty trucks, and SUVs.
- Design Intent: Maximizes smoothness and durability under standard road conditions.
What Is Reverse Rotation?
Reverse rotation, also called “reverse cut” or “high pinion,” is not the same as spinning in the opposite direction. Instead, it refers to how the gear teeth are cut, enabling the gear to rotate in the same direction but engage differently.
- Pinion Approach: Enters the ring gear on the convex side.
- Typical Use: Front axles in off-road vehicles, solid front axles, and applications requiring higher ground clearance.
- Design Intent: Enhances strength, especially under forward torque.
Key Differences at a Glance
| Feature | Standard Rotation | Reverse Rotation |
|---|---|---|
|
Tooth Engagement |
Concave side first |
Convex side first |
|
Pinion Location |
Lower on housing |
Higher on housing |
|
Load Strength (Forward) |
Lower |
Higher |
|
Common Use |
Rear axle (OEM) |
Front axle (Off-road) |
|
Driveshaft Angle |
Sharper |
Straighter |
|
Ground Clearance |
Standard |
Improved |
Why Reverse Rotation Matters in Off-Road Applications
In off-road driving, the demand on the front axle can be intense. Climbing rocks, navigating uneven terrain, and high-torque applications require maximum strength and optimal geometry. Here’s why reverse rotation is preferred:
- Stronger Under Forward Load: The convex engagement surface is more robust, improving gear life under torque.
- Higher Pinion Placement: Improves ground clearance and reduces vulnerability to rocks and debris.
- Reduced Driveshaft Stress: Less severe angles help with CV joint and U-joint longevity.
Does Reverse Rotation Spin Backwards?
No, this is a common misconception. Reverse rotation gears rotate in the same direction as standard gears; the term “reverse” refers only to the way the gear teeth are cut. Both types can propel a vehicle forward; their difference lies in strength optimization and configuration.
Choosing Between Reverse and Standard Rotation
When choosing between these two types of gearsets, consider the following:
1. Axle Type
- Rear Axle: Typically uses standard rotation gears.
- Front Axle (High-Pinion): Often uses reverse rotation gears.
2. Vehicle Purpose
- Daily Driving: Standard rotation is sufficient.
- Off-Road or Performance: Reverse rotation may be necessary.
3. Gear Housing Compatibility
The axle housing must be designed to accept reverse cut gears. Installing reverse gears in a standard housing (or vice versa) is not possible.
4. Brand and Aftermarket Options
Many aftermarket axle manufacturers produce both options. Make sure the gearset matches the rotation cut of your specific differential.
Applications by Vehicle Type
| Vehicle Type | Suggested Gear Type |
|---|---|
|
Toyota Land Cruiser (Rear) |
Standard Rotation |
|

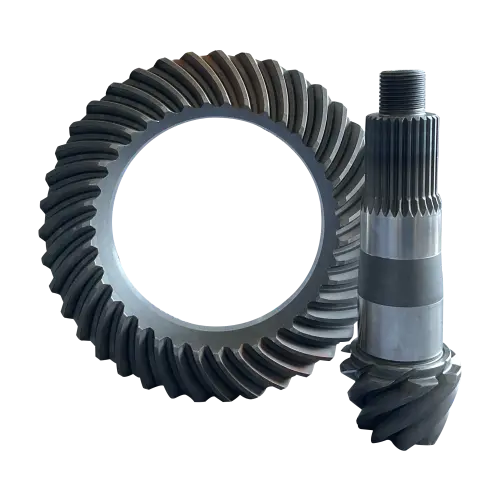

Jeep Wrangler Front Dana 44 |
Reverse Rotation |
|
Ford F-150 Rear Axle |
Standard Rotation |
|
Off-Road Rock Crawler (Front Axle) |
Reverse Rotation |
|
GM 4x4 SUV Rear |
Standard Rotation |
Installation Considerations
Switching between gear types requires more than just changing the ring and pinion. Here’s what to check:
- Differential Housing Compatibility
- Bearing and Shim Kits
- Pinion Angle
- Driveshaft Fitment
- Gear Break-in Procedures
Final Thoughts
Understanding the difference between reverse and standard rotation crown wheel and pinion gears is essential for choosing the correct setup for your vehicle. Whether you’re building a daily commuter, a race truck, or an off-road machine, selecting the right gear configuration ensures performance, safety, and longevity.
Always verify your axle type, intended use, and housing compatibility before ordering. Choosing the right rotation cut is not just a mechanical decision—it’s an investment in your vehicle’s long-term performance.
Need help finding the right gear set for your build? Contact our experts for personalized support.
