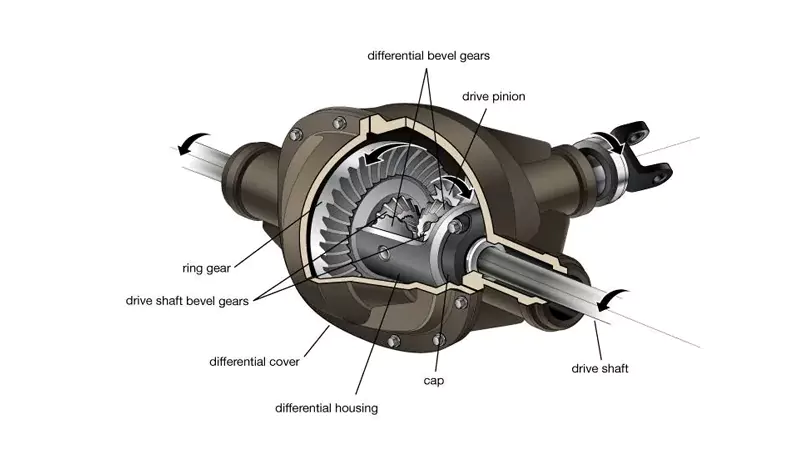

When it comes to drivetrain components, few choices are as critical as selecting the right ring and pinion gear set. These gears determine final drive ratio, influence acceleration and top speed, and directly impact durability under load. One important distinction that often goes unnoticed is whether a set is hunting or non-hunting. Understanding this difference can help you make better decisions when choosing a gear ratio for your vehicle.
What Is a Hunting Gear Set?
A hunting gear set is one in which the pinion teeth eventually contact every tooth on the ring gear over time. This happens because the number of teeth on the pinion and the ring gear share no common divisor other than one. As the gears rotate, the contact pattern “hunts” around the entire ring gear.
Key Characteristics of Hunting Sets
- Each pinion tooth mates with every ring gear tooth at some point.
- Wear is evenly distributed across the entire ring gear.
- Typically quieter and smoother in operation.
- Longer lifespan under heavy use.
Example
A 41-tooth ring gear paired with an 11-tooth pinion (ratio 3.73). Since 41 and 11 have no common divisor other than 1, the set is hunting.
What Is a Non-Hunting Gear Set?
A non-hunting gear set occurs when the pinion teeth only mesh with specific ring gear teeth repeatedly, rather than eventually contacting every tooth. This is because the ring and pinion tooth counts share a common divisor greater than one.
Key Characteristics of Non-Hunting Sets
- Each pinion tooth always meshes with the same group of ring gear teeth.
- Localized wear develops more quickly.
- Typically easier to manufacture for certain ratios.
- May produce more noise over time as wear becomes uneven.
Example
A 40-tooth ring gear paired with a 10-tooth pinion (ratio 4.10). Since both numbers share the common divisor 10, this is a non-hunting set.
Why the Difference Matters
The choice between hunting and non-hunting gear sets is not just academic—it directly affects performance, durability, and maintenance:
- Durability: Hunting sets last longer under demanding conditions, making them the preferred option for racing, off-road, and towing applications.
- Noise and Vibration: Hunting sets distribute engagement evenly, reducing the chance of localized wear that leads to gear whine.
- Ratio Availability: Some popular ratios are only available as non-hunting sets, which is why they remain widely used despite the drawbacks.
How to Identify Hunting vs Non-Hunting
The rule of thumb is simple: if the number of teeth on the ring and pinion gears have a greatest common divisor (GCD) of one, the set is hunting. If the GCD is greater than one, the set is non-hunting.
- Hunting: GCD = 1
- Non-Hunting: GCD > 1
Common Ring and Pinion Ratios and Their Type
Below is a table showing popular gear ratios and whether they are hunting or non-hunting:
| Ring Teeth | Pinion Teeth | Ratio | Type |
|---|---|---|---|
|
41 |
11 |
3.73 |
Hunting |
|
41 |
10 |
4.10 |
Non-Hunting |
|
39 |
11 |
3.55 |
Hunting |
|
37 |
9 |
4.11 |
Hunting |
|
41 |
9 |
4.56 |
Hunting |
|
43 |
14 |
3.07 |
Hunting |
|
41 |
8 |
5.13 |
Hunting |
|
40 |
10 |
4.00 |
Non-Hunting |
|
41 |
12 |
3.42 |
Hunting |
|
39 |
13 |
3.00 |
Hunting |
This table is not exhaustive, but it highlights some of the most common ratios found in performance and utility vehicles.
Practical Considerations When Choosing a Gear Set
1. Application
If you are building a high-performance or off-road vehicle, a hunting gear set is often more desirable due to its longevity and reduced risk of uneven wear. For light-duty or budget builds, a non-hunting set may still perform adequately, especially if it provides the exact ratio you want.
2. Availability
Not every ratio is offered in both hunting and non-hunting versions. For example, the 4.10 ratio is almost always a non-hunting design, but it remains a favorite among enthusiasts for its balance of acceleration and highway use.
3. Maintenance
Non-hunting sets require more frequent inspection and potentially earlier replacement, particularly in high-stress environments. Monitoring for gear noise and wear patterns becomes more important.
4. Cost
Hunting gear sets can sometimes be more expensive due to complexity in design, but the longer service life may offset the initial price difference.
Comparing Hunting and Non-Hunting Sets
| Factor | Hunting Gear Set | Non-Hunting Gear Set |
|---|---|---|
|
Tooth Contact |
Every tooth eventually mates |
Limited to certain teeth |
|
Wear Pattern |
Evenly distributed |
Localized, uneven |
|
Noise Level |
Typically quieter |
More prone to noise over time |
|
Lifespan |
Longer under heavy loads |
Shorter if heavily used |
|
Ratio Options |
Limited but balanced ratios |
Includes some popular ratios |
Which One Should You Choose?
- Choose a hunting gear set if you value durability, even wear, and long-term reliability.
- Choose a non-hunting gear set if you require a specific ratio not available in hunting form, or if your application is less demanding and budget is a primary concern.
Conclusion
Selecting the right ring and pinion gear set is more than just choosing a ratio. Whether the set is hunting or non-hunting influences performance, wear characteristics, and long-term reliability. By understanding the difference and knowing how to identify each type, you can make more informed decisions when upgrading or replacing gears in your vehicle.
While both designs have their place, hunting sets remain the gold standard for strength and durability, while non-hunting sets fill the gap by offering certain popular ratios that drivers demand. The key is to align your gear choice with your vehicle’s purpose and performance goals.
