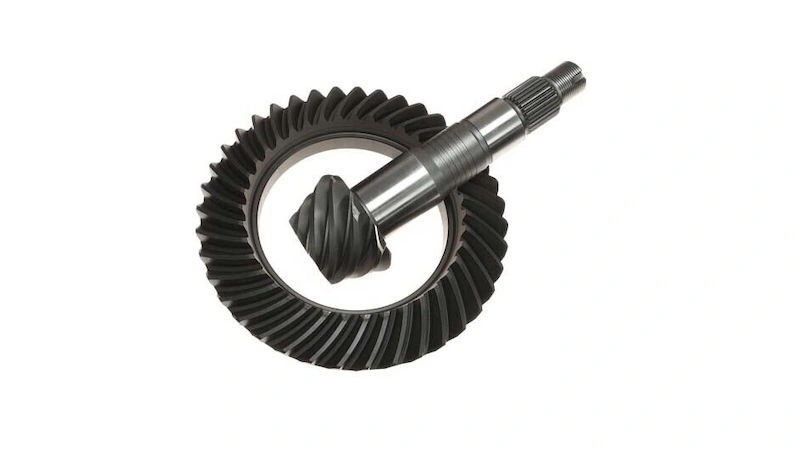

Ring and pinion gears are the heart of your vehicle’s differential, delivering power from the engine to the wheels with precision. Whether you’re a modification enthusiast upgrading your ride for off-roading or a DIYer tackling your own repairs, understanding gear failures can save you time, money, and frustration. From annoying whines to major breakdowns, this guide covers the most common ring and pinion gear issues, how to diagnose them, and practical fixes to get your vehicle back on the road—or trail.
Why Differential Problems Deserve Your Attention
Nothing derails a build like a failing differential. Whether you’re boosting your truck’s towing power, prepping a sports car for the track, or customizing a 4×4 for off-road adventures, ring and pinion gear issues can compromise performance. By learning to spot and fix these problems, you can keep your project on track and avoid costly shop visits. Let’s dive into the top failures and how you can tackle them yourself.
Common Ring and Pinion Gear Failures
Here are the most frequent issues modders and DIYers encounter with ring and pinion gears, along with their causes and signs, based on industry insights.
1. Whining or Howling Noises
- A high-pitched whine or howl, especially when accelerating, decelerating, or cruising at certain speeds.
- Improper Setup: Incorrect backlash (the gap between gears) or pinion depth leads to misalignment and noise.
- Worn Gears: Heavy use, like off-roading or towing, wears down gear teeth, causing vibrations.
- Lubrication Issues: Low or old gear oil fails to cushion the gears, resulting in metal-on-metal contact.
- Take your vehicle for a test drive to note when the noise happens (e.g., under load or coasting).
- Use a dial indicator to measure backlash (aim for 0.006–0.010 inches for most differentials).
- Apply marking compound to the ring gear and rotate it to check the contact pattern. A pattern too high or low means misalignment.
- Check gear oil for low levels or metal particles, which signal wear or poor lubrication.

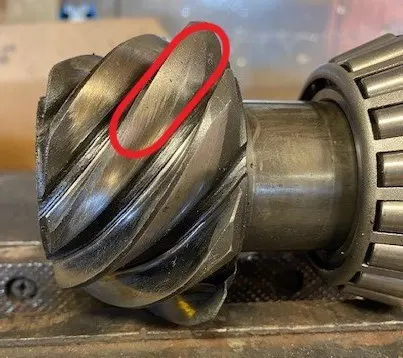

2. Gear Tooth Pitting or Scoring
- Pits or grooves on gear teeth, often with rough operation or faint noise.
- Overloading: Pushing your vehicle with heavy loads or aggressive mods stresses the gears.
- Poor Lubrication: Inadequate or low-quality gear oil accelerates surface wear.
- Material Fatigue: High-torque builds, like those with upgraded engines, cause pitting over time.
- Remove the differential cover and inspect gear teeth for pits, scoring, or discoloration.
- Look for metal shavings in the gear oil, a sign of surface damage.
- Review your vehicle’s mods (e.g., larger tires or towing setups) to identify overloading.

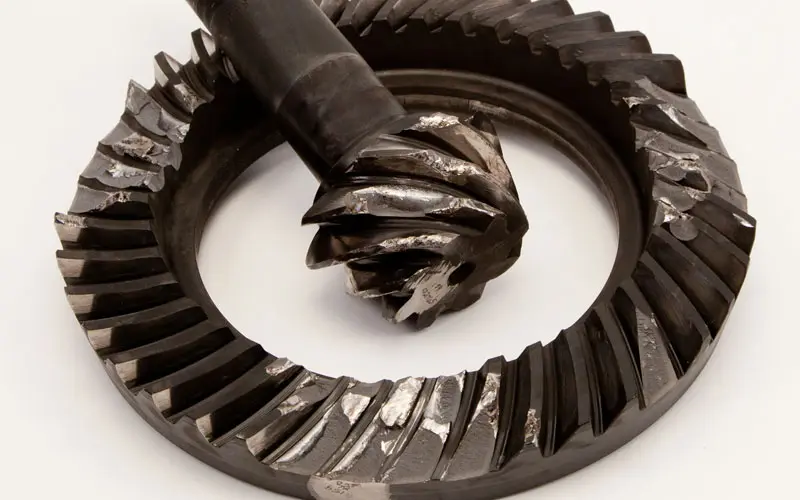

3. Gear Tooth Breakage
- Loud clunking, grinding, or loss of power to the wheels.
- Shock Loading: Sudden impacts, like hard launches or rough off-roading, can break teeth.
- Low-Quality Gears: Cheap or poorly treated gears lack the strength for demanding builds.
- Bad Installation: Misaligned gears concentrate stress, leading to fractures.
- Check gears for broken or missing teeth.
- Look for signs of shock loading, like bent axles or damaged differential components.
- Verify your setup’s backlash and contact pattern to rule out installation errors.

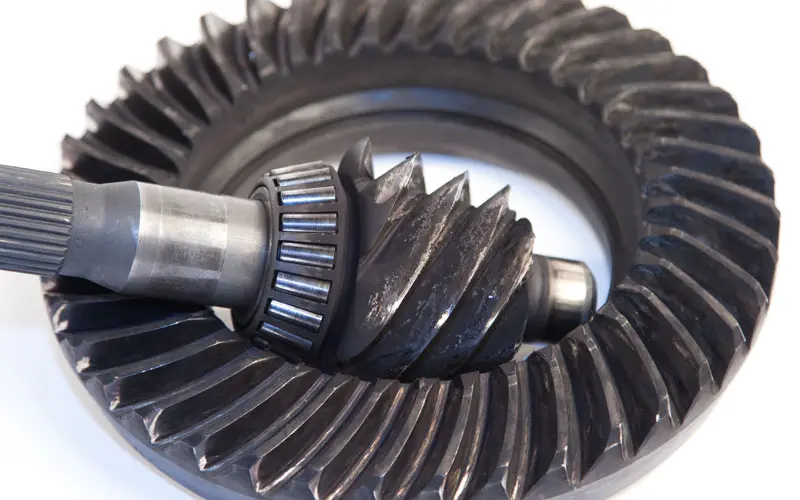

4. Excessive Wear or Overheating
- Burnt gear oil smell, discolored gears, or fast wear on new gears.
- Overheating: High loads or poor lubrication make gears run hot, weakening them.
- Contaminated Oil: Dirt or water in the differential speeds up wear.
- Wrong Gear Ratio: A mismatched ratio strains gears, especially in modified vehicles.
- Sniff gear oil for a burnt odor or check for dark, gritty texture.
- Inspect gears for bluing or discoloration, signs of overheating.
- Confirm your gear ratio matches your vehicle’s mods, like larger tires or a tuned engine.
How to Fix Ring and Pinion Gear Issues
Ready to roll up your sleeves? Here’s how to address these failures and keep your build running smoothly.
1. Fine-Tune Backlash and Pinion Depth
- Use a dial indicator to set backlash within specs (typically 0.006–0.010 inches).
- Apply marking compound to the ring gear and rotate it to check the contact pattern. Adjust shims to center the pattern for smooth operation.
- Double-check pinion depth to ensure proper gear meshing, reducing noise and wear.
2. Replace Damaged Gears
- If you spot pitting, scoring, or breakage, replace both the ring and pinion gears as a set to ensure even wear.
- Choose high-strength gears (e.g., 8620 or 9310 alloy steel) built for your build’s demands, like off-roading or towing.
- Source gears from a reliable supplier to guarantee durability and fit.
3. Upgrade Your Lubrication Game
- Use top-tier synthetic gear oil (e.g., 75W-90 or 80W-140) matched to your vehicle’s needs.
- Check oil levels and replace any contaminated or degraded oil.
- Schedule regular oil changes, especially for high-stress builds like off-roaders or drag cars.
4. Match Your Gear Ratio to Your Build
- Ensure your gear ratio suits your mods. For example, larger tires or a beefier engine may need a higher ratio (e.g., 4.56:1) for optimal performance.
- Consult your vehicle’s manual or a gear expert to pick the right ratio for towing, racing, or off-roading.
Tips to Prevent Future Gear Failures
Keep your differential in top shape with these DIY-friendly tips:
- Invest in Quality Gears: High-strength, precision-engineered gears reduce the risk of failure, especially for modified vehicles.
- Learn Proper Setup: Master backlash, pinion depth, and contact pattern adjustments to avoid noise and wear.
- Stay on Top of Maintenance: Regularly inspect your differential and change gear oil to catch issues early.
- Know Your Limits: Avoid overloading your vehicle beyond what your gears can handle, whether towing or hitting the trails.
Why Choose Premium Gears for Your Build?
